Sprite Lamp is a tool for combining the styles possible with 2D art, such as painted or pixel-art looks, with dynamic lighting found in modern games. Game developers will be able to make games in the style of classics like Metal Slug or Braid, combined with the gameplay and visual appeal made possible by moving or otherwise changing light sources. This is achieved by the artist painting an object lit from several directions, images called 'lighting profiles', and then processing them into normal maps, depth maps, ambient occlusion maps, and a few others. Sprite Lamp also includes a variety of shaders designed to get the most out of these maps.

This free demo of Sprite Lamp allows you to experiment with all the features of the base version, including generating maps and viewing them under different lighting conditions in the preview window, but doesn't include the ability to export most created maps to disk for use in game engines (the exceptions to this are baked lighting renders and lighting demo gifs).

How it works

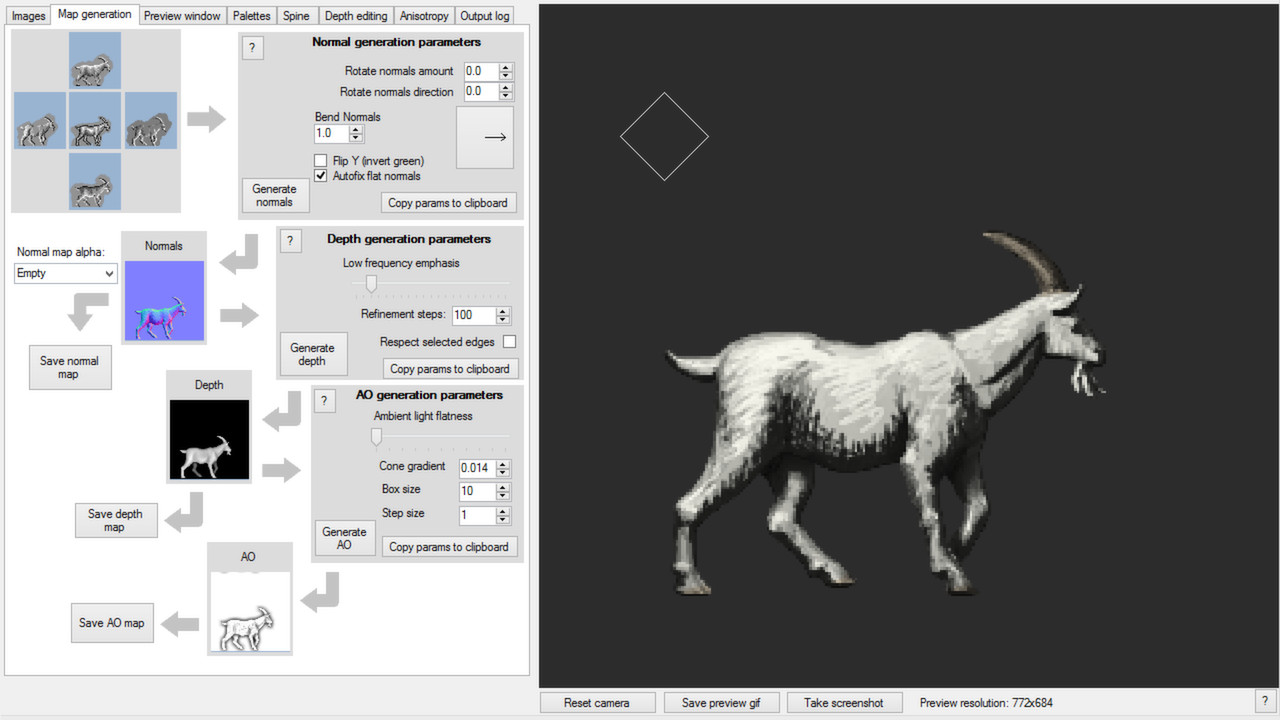

Sprite Lamp is all about letting artists paint images in a form they are familiar with, and using those images to create the more difficult or counterintuitive maps that are required by modern shaders. This primarily takes the form of painting the same subject lit from a few different directions - between two and five - and processing these images to create a normal map and a depth map.

Rendering

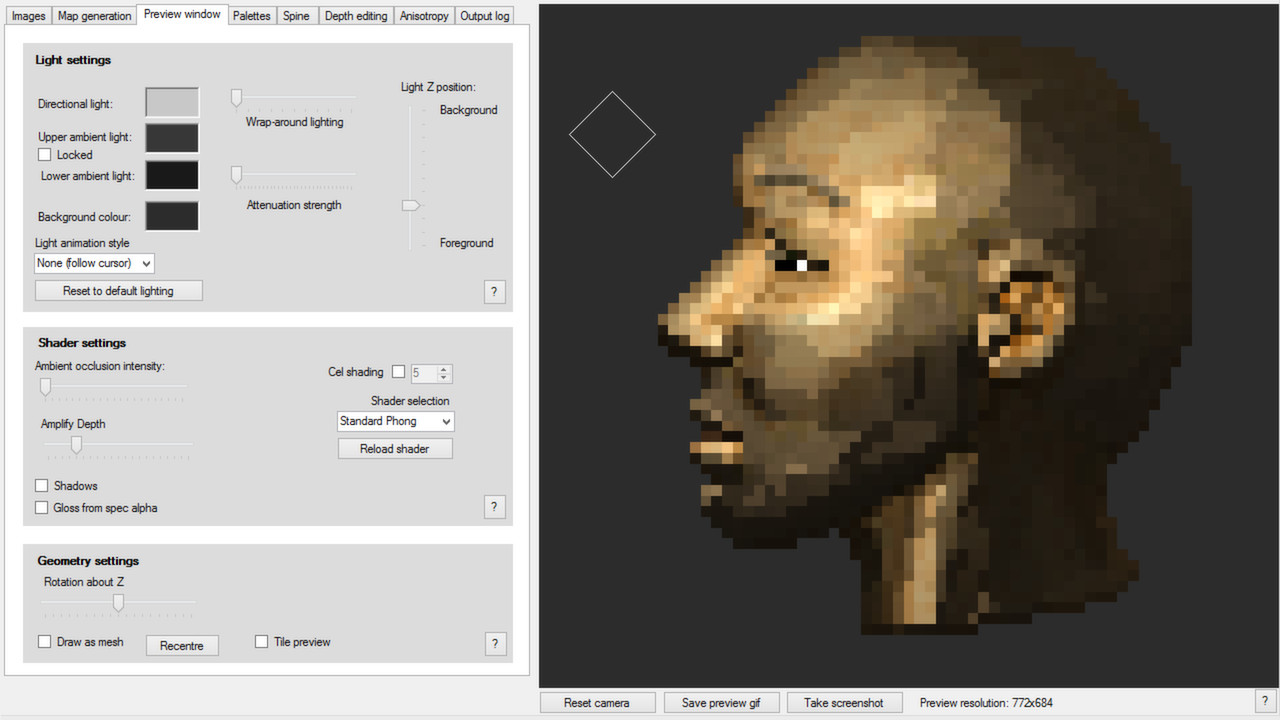

Sprite Lamp includes a preview window and various shader options to let you experiment and find out what looks best with your artwork. Sprite Lamp's shaders are included in Sprite Lamp in GLSL form, fully commented, and can be used as a base for including them in your own game. Versions of the shader are also under development for a variety of common engines, including Unity and Game Maker, and will be made freely available. Sprite Lamp's preview window supports:

• Moveable light source with variable colour, intensity, and attenuation

• Hemispheric ambient lighting

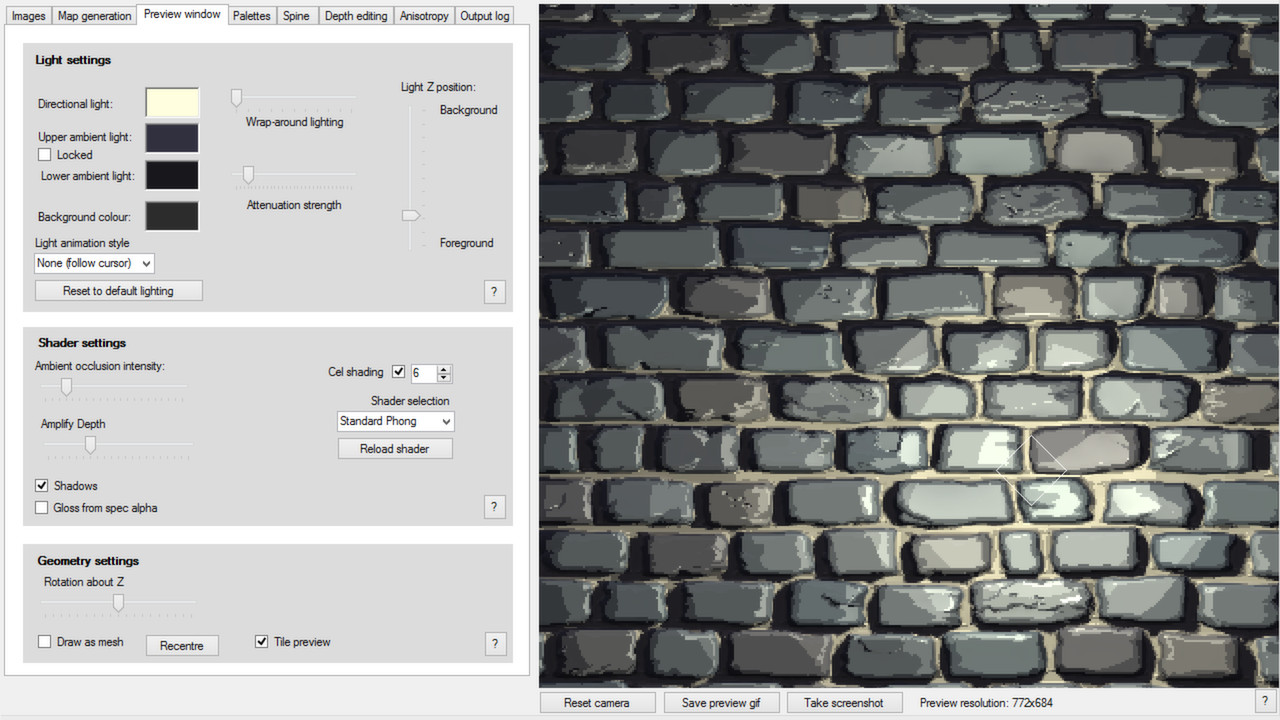

• Cel shading

• Self shadowing with depth maps

• Mapping of specular colour, glossiness, emissive colour, and ambient occlusion

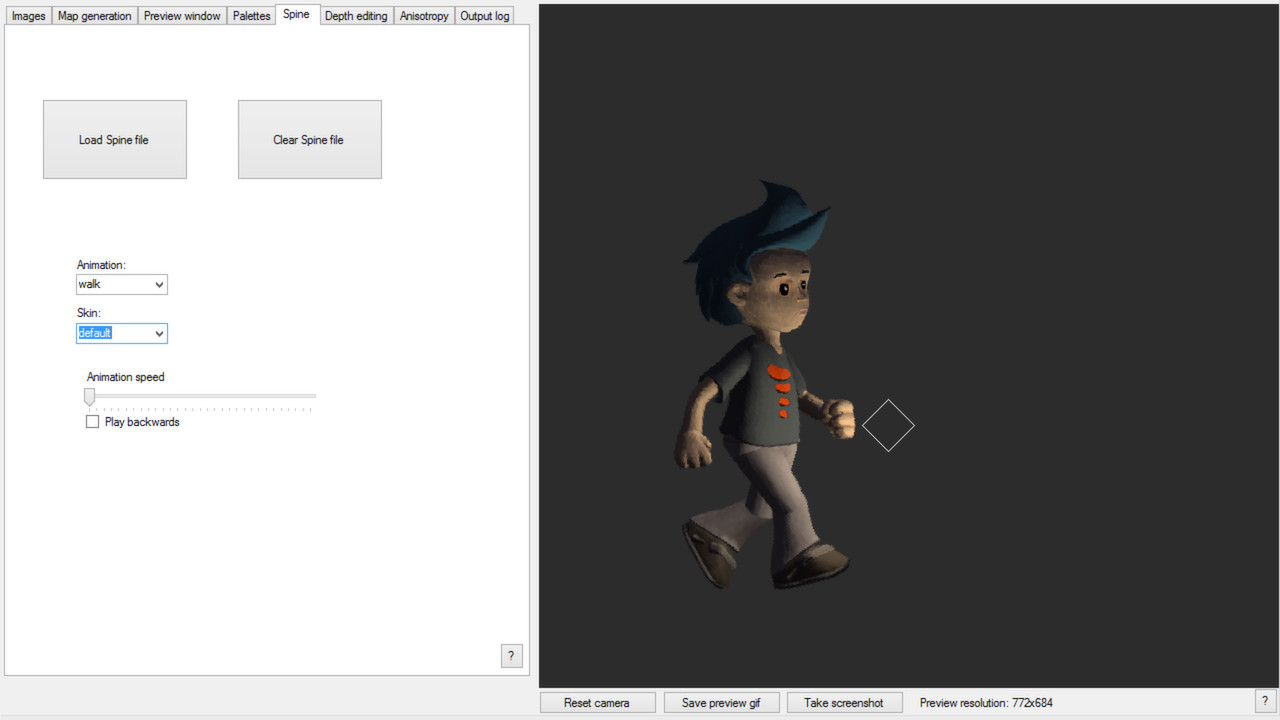

• Rendering of animated characters exported from Spine, by Esoteric Software

Pro version

Upgrading to the pro version of Sprite Lamp gives the user access to a variety of additional features suited to larger studios.

• A full command line interface

• The ability to convert simple-to-paint 'flow' maps to anisotropy maps for use with external renderers

• The ability to edit and fine tune the depth maps generated by Sprite Lamp

• The ability to load multiple sets of images, process them all at once, and then animate them in the preview window
